Veth Propulsion reduces height in thruster design

The Integrated L-drive thruster.
The Integrated L-drive thruster is available with nozzle or counter rotating propellers with power ranging from 300 kW to 1,325 kW. © Veth Propulsion

Veth Propulsion, the Dutch thruster specialist, launched a compact propulsion unit: the Veth Integrated L-drive, based on essential principles such as space, efficiency and noise reduction. Veth states that the Integrated L-drive is a revolutionary concept because it is the most compact electric propulsion system in the world. It can be fitted into various types of vessels, ranging from super yachts to work boats.

Very compact thruster

The PM (permanent magnetic) motor was designed in collaboration with Visedo and allows for a much lower mounting height. On average, a PM motor is 40% to 60% more compact than an asynchronous motor. This PM motor is integrated into the thruster and makes a very compact thruster, when combined with the special mounting method, the alignment of the headsets and the adjustments to the control box. The design makes use of every millimeter, without compromising quality.

The patented and innovative Integrated L-drive is constructed using proven mechanical components. “The minimal mounting height allows the thruster to be fitted below deck height, so that few vulnerable capital assets are underwater,” says Erik Veth, CEO of Veth Propulsion.

Noise reduction

Veth’s Integrated L-drive is diesel-electric driven, which results in huge noise reduction in the first place. The choices the company made for a L-drive (no gear transmission in the vessel), a water-cooled PM-motor (re the air-cooled asynchronous motor) and electrical controlling (re hydraulic controlling) guarantees even more noise reduction.

High efficiency and minimal resistance

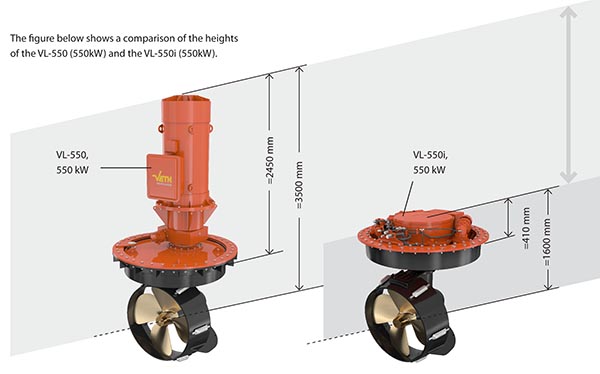

The newly developed Veth Propulsion.
The newly developed Veth Propulsion Integrated L-drive thruster has a remarkable low height compared to conventional designs. © Veth Propulsion

Because an L-drive has only one gear transmission, it already results in higher efficiency. A PM motor, in particular the part load, is more efficient than an asynchronous motor. “At e.g. 25% load, there is an improvement in efficiency of 5.2%!” says Veth.

The Veth Integrated L-drive is available with nozzle or counter rotating propellers with power ranging from 300 kW to 1,325 kW. Larger units are still being developed. The patented Sharktail is used for the tail of the counter rotating propellers. Together with Promarin the tail has been further optimised and the asymmetrical shape ensures an optimal flow of water towards the second propeller. Combined with the flow caps which are affixed around the stationary parts of the thruster (fairing plates) it minimizes the resistance. “We are convinced we made the new standard in electric propulsion with the Veth Integrated L-drives,” Veth says proudly.

“The new Integrated L-drive is an excellent example of the combination of innovation and durability, resulting in a competitive, high-quality product” claims the Dutch thruster manufacturer.
